Flash LED 120W Spot Moving Head Вращающаяся голова
Flash LED 120W Spot Moving Head Вращающаяся голова

Flash LED 120W Spot Moving Head Вращающаяся голова

60 515 p 42 500 p

Cветодиодная вращающаяся голова типа Spot,120 Вт ультра яркий CREE диод, угол раскрытия 15 гр,призма,8+1 цветов,7+1 гобо, DMX управление.

Артикул F7000587
Купить в 1 клик

LED MOVE SPOT RGB 120W светодиодная вращающаяся голова типа spot , 120 Вт CREE LED


Технические характеристики:

  • Питание: AC90-260V 50-60Hz
  • LED характеристики: 1x120W ультра яркая белая LED матрица
  • Градус раскрытия 15*
  • Яркость: 1730lux @4m; 7350lux @2m
  • Управление: DMX512, мастер слэйв,звуковая активация,авто режим
  • Количество каналов: 16 DMX
  • Колесо цвета: 8
  • Колесо гобо: 7
  • Рото гобо,шейк эффект
  • Шуттер
  • Диммер: 0-100%
  • Строб: 1-18Hz
  • вращающаяся 3-фацетная призма
  • Мощность: 240W
  • Размеры: 203x300x437mm
  • Вес: 11kg

Динамические эффекты:
The color wheel (8 colors + white)
Gobo wheel (7 gobo + open)
Prism (3 - Wall rotary)
Dimmer (0-100%)
Electronic Focus
Frost
Strobe (1-18hz)
PAN: 540˚
TILT: 240˚
Speed control PAN, TILT DMX


CONTROL AND PROGRAMMING
1. Control of the market definition PAN and TILT (8bit or 16bit)
2. DMX 512: 16channels
3. and addressing settings: graphic LCD with back light

OPTICS
1. Viewing angle: 15˚
2. Electronic Focus
3. 3-wall rotating prism
4. The Power of Light: Light power: LUX: 142500 @ 10m, 84300 @ 15m
5. The color wheel (8 dichromate filter + white)
6. Gobo wheel (7 gobo + open)

EXECUTION
1. Aluminum construction with plastic
2. Two side handles for transportation
3. Two locking PAN and TILT speed for safe handling of the head
4. Degree of protection: IP20

INSTALLATION
1. Two handles for screw hooks
2. Indoor use only
3. Mounting head in any position
4. Minimum distance to illuminated surfaces: 3m
5. Keep a minimum distance from the surrounding area of the head: 0.5 m

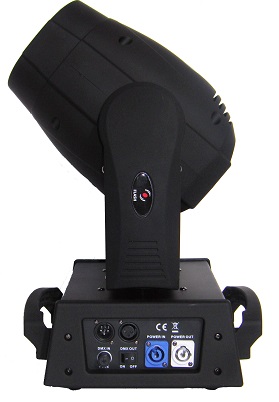

CONNECTORS
1. Power connector IN: Neutrino Power Con
2. Mains connector OUT: Neutrino Power Con
3. DMX512 signal connector: 3-pin XLR (IN, OUT), and 5-pin XLR (IN, OUT)

ELECTRICAL
1. Power supply: AC90-260V 50-60Hz
2. Maximum power consumption: 240W
3. Protection: F7AL

ACCESSORIES INCLUDED
1. Power-Con power cable IN (blue connector)
2. Power-Con power cable OUT - Extension (gray connector - blue connector)
3. DMX512 cable - XLR 3pin (2p)
4. DMX512 cable - XLR 5pin (2p)
5. Brackets for attaching the head to the structure (2p)
6. User manual

Technical Parameters:
Input Voltage: AC90-260V 50-60Hz
LED Quantities: 1x120W high brightness white LED unit
Beam angle 15*
Output: 1730lux @4m; 7350lux @2m
Control Signal: DMX512, master-slave and sound activated or auto operation
Control Channel: 16 DMX Channels
Color wheel: 8
Gobo wheel: 7
Roto Gobo, Roto Shake Gobo
Shutter
Dimmer: 0-100%
Strobe: 1-18Hz
Roto 3-facet prism
Power Consumption: 240W
Dimensions: 203x300x437mm
Weight: 11kg
